Compact aerosol paint dosing system for 400–500 ml cans — up to 150 units per hour, ATEX Zone 1 certified construction.
Paint dosing unit for 400–500 ml aerosol cans. Fully enclosed explosion-proof housing with stainless steel body and frame. Certified for ATEX Zone 1 operation. Fills 100 ml of product in 15–20 seconds, throughput up to 150 cans per hour.
DIMENSIONS
Standard: 25 × 33 × 53.5 cm. With 5-litre can filler: 31 × 43 × 74 cm.
POWER SUPPLY
220–240 V / 50 Hz. Optional 110–60 Hz / 50 Hz. Powered by 0.12 kW motor.
ATEX CONSTRUCTION
Fully enclosed explosion-proof stainless steel housing, certified for Zone 1 hazardous areas.
OPERATION

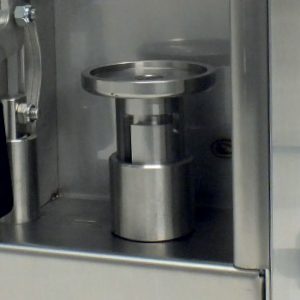

Power on, fill, reverse pump cycle, switch off, replace can. Spring-loaded can locator adjustable for 400 and 500 ml cans.
COMPACT DESIGN
Minimal footprint. Plug in, add paint, calibrate dosing time for 100 ml — ready to operate.
