Collomix

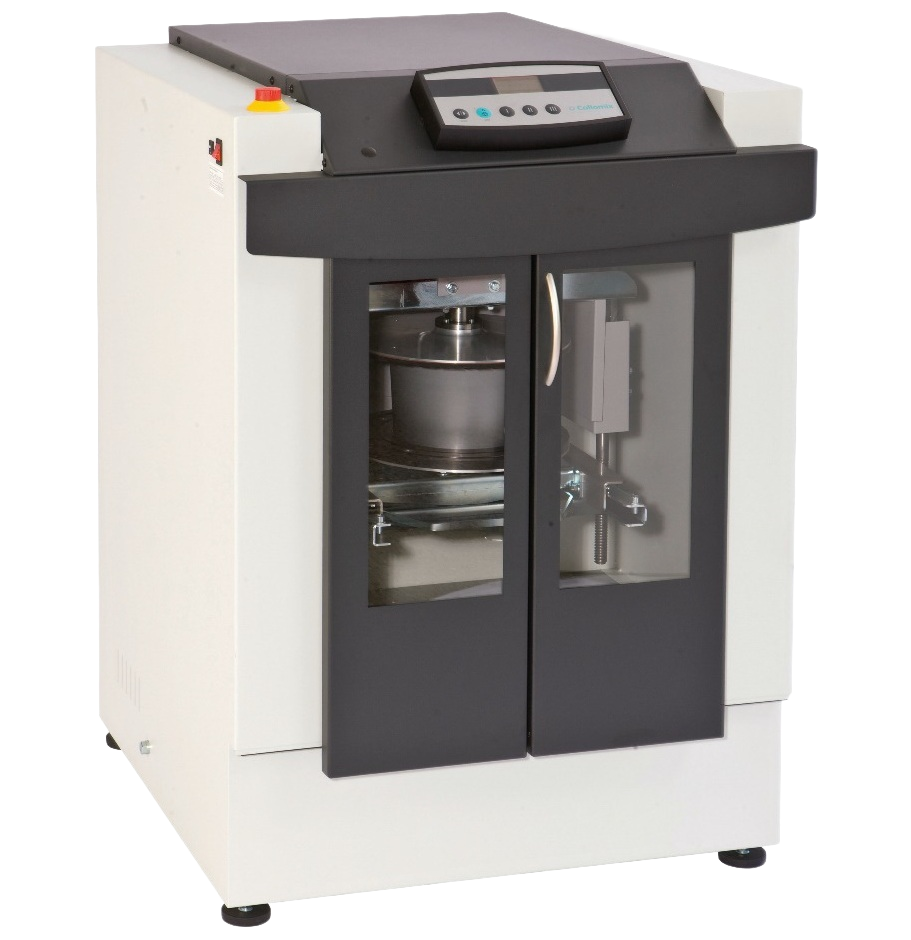

Gyroscopic Mixer VISCO
✓
For high-viscous materials
Developed for perfect mixing results with high viscosi es in even small containers
✓
High speed mixing
Speed and me parameters can be adjusted in line with material’s requirements.
✓
High level process reliabilty
Complete homogenisa on of components in closed containers; under standardised mixing condi ons
Technical Specification
Max. mixing weight
1 - 12.5 kg
Container height
90 – 300 mm
Max. container diameter
300 mm
Container type
round / metal / plastic
Multiple containers at the same time
230 V / 50 Hz (110 V / 60 Hz optional)
Motor output
1.5 kW
Max. speed
600 rpm (programmable)
Mixing times
3 programmable times
Clamping pressure
automatic - depending on 3 selectable containers hights
Door option
Manual sliding door
Loading type
Manual pull-out clamping plate
Clamping plate / loading height
485 mm (+15 mm)
Can be combined with roller conveyor
no
Machine dimensions (W x D x H)
777 x 820 x 1110 mm
Machine weight
190 kg
